Non-corrosive, resistance humidity razor barbed wire price in bangladesh
Product introduction
Razor barbed wire known as military barbed wire, it has been widely used in many countries and mining enterprises, garden apartments, border posts, the military, prisons, detention centers, government buildings and security facilities in other countries.

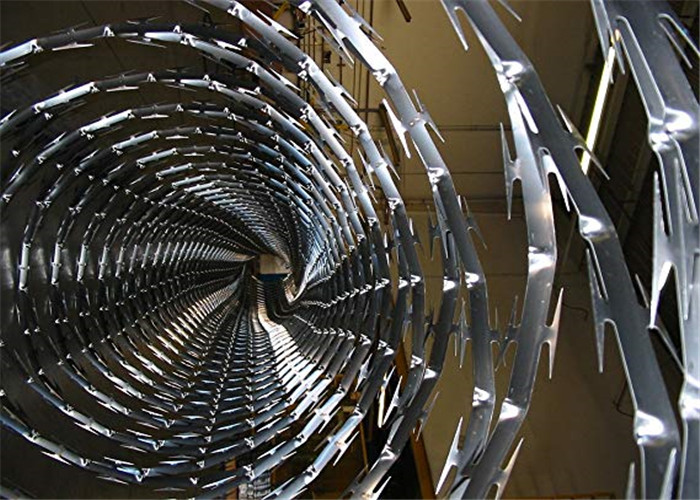

Concertina razor barbed wire details:
Material: 2.5MM galvanized wire and 0.5MM thickness galvanized steel strips, stainless steel wire is available.
Concertina Razor barbed wire can be divided into Spiral, straight, spiral-cross three forms.
And we also supply razor wire single coil and double coil if customers have special requries.
2.Common specifications
| Specification | Thickness (mm) | Wire Dia. (mm) | Barb Length (mm) | Barb Width (mm) | Barb spacing (mm) |
| BTO-10 | 0.45±0.05 | 2.0-3.0 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.45±0.05 | 2.0-3.0 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.45±0.05 | 2.0-3.0 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.45±0.05 | 2.0-3.0 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.45±0.05 | 2.0-3.0 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.45±0.05 | 2.0-3.0 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.45±0.05 | 2.0-3.0 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.45±0.05 | 2.0-3.0 | 65±2 | 21±1 | 100±2 |
| Concertina Coil Specification |
| Coil Diameter | 300mm | 450mm | 730mm | 730mm | 980mm | 980mm | 1250mm |
| | (12inch) | (18inch) | (28inch) | (36inch) | (36inch) | (36inch) | (50inch) |
| Recommended Stretch Length | 4m | 10m | 15-20m | 10-12m | 10-15m | 8m | 8m |
| Coil Diameter When Stretched | 260mm | 400mm | 600mm | 620mm | 820mm | 850mm | 1150mm |
| Spiral Turns Per Coil | 33 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 | 54/55 |
| Clips Per Spiral | 3 | 3 | 3 | 5 | 5 | 7 | 9 |
| Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
Normal package: 4-15kg per coil (different lengths and outside diameters can be ordered per coil ) Moisturer-proof paper coated and woven bags outside. Some customers need paper carton packaging, 5 coils per carton, weight 25-30kg.

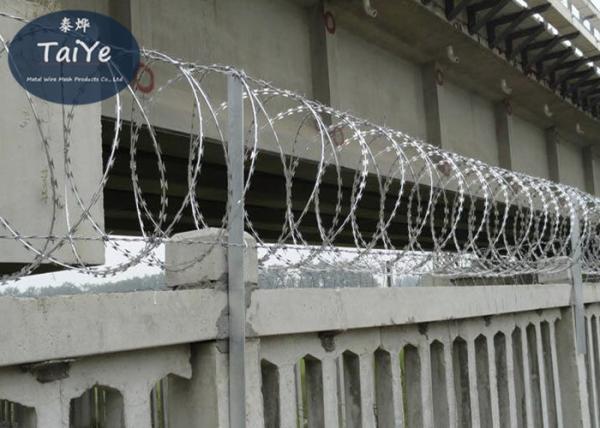

It can be installed on the wall, on the gate,or on the top with fence, also installed on ship as protective fencing, depending on the installation environment can be changed .
Phone/Whatsapp/Wechat:+86 182 3239 0392
Email:wiremesh2@aptaiye.com
